Minimag micro speedo

The Minimag M-SPEED is a complete self-contained microprocessor-controlled speedometer featuring a high resolution graphical display. The device is supplied uncased for the engineer to fit into a panel or other enclosure to suit the application.

The device can be fitted to steam locos, traction engines, electric locos and other model electric vehicles. The included omni-magnetic sensor has exceptionally long range making it highly tolerant of misalignment and varying clearance due to end-float, suspension travel etc.

Wheel  RPM information is picked up by a magnetic switch arranged to “see” a small magnet fitted to a rotating part of the vehicle, typically an axle or a wheel hub. Thus the device receives one pulse per revolution.
Software is used to calculate speed from a known wheel diameter which can be adjusted  between 2” and 15” in 0.1" increments. Speed is output as both a bargraph and numerics to the high contrast OLED display. An internal Lithium Polymer battery powers the system with a run-time per charge in excess of eight hours. There is a built-in Odometer and hourmeter function.

Capacitor discharge Ignition System

A compact, low power consumption ignition system
  • Connections by colour-coded screw terminals
  • Sturdy plastic housing with mounting lugs. 81 overall length x 38 wide x 34 overall height
  • Highly efficient - minimal heat generation.
  • HT output on flying leads. Fitted with a croc-clip for HT and ring terminal for earth return.
    If using with a Rimfire plug, we'll fit an HT clip on request.
  • 3 to 6 volt operation.
  • Triggered by low voltage Hall sensor or by contact points, microswitch or reed switch.
  • Kit includes everything you need:
    • Low voltage Hall sensor assembly
    • 3x2 neodymium magnet
    • Ignition Unit with integral ignition coil
    • Switched battery box
    • 2x alkaline AA cells
    • Full instructions
  • LED indicator for static timing.
  • Maximum sustained spark rate 50Hz (= 6000 RPM on a four-stroke single) on 3 volts
    to 100Hz (=12,000 RPM on a four-stroke single) on 6 volts
  • Technical support always freely available by telephone or email.

    Link to Buy Page

  • Capacitor Ignition System
Dual output version of the MCL-1 for wasted-spark twin cylinder engines.
Contact us for pricing and availability

Small engine start-up box
Sorry, this item is currently unavailable

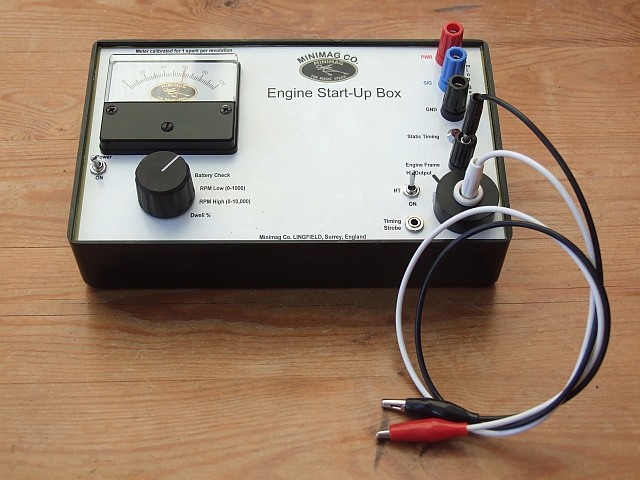

A completely self-contained start-up box for the model IC engine builder.

  • Meter for Battery Check, Low / High RPM (0 to 1000 and 0 to 10,000) and Closed Dwell
  • Built-in overload spark gap protects the internal ignition coil should the HT lead disconnect
  • Socket for an optional strobe timing light
  • Connecting leads are included
  • An MRS-1 miniature Proximity Sensor together with a selection of actuating magnets included

Attach a magnet to a rotating part of your engine, either camshaft or crankshaft. Mount the MRS-1 sensor so it "sees" the magnet. Adjust magnet position so sensor switches on then off at your desired ignition point. Wire up the sensor to the box (colour-coded). Connect the white HT lead to your spark plug and connect the black ground lead to your engine frame. Switch on. Your engine will now be supplied with correctly timed sparks.

To keep costs down, the box is initially being made available as a kit of parts. The builder will need to drill the front panel, make a few small components and complete the wiring to a reasonable standard. A small soldering iron is required. The meter circuit board is pre-assembled, tested and calibrated for single cylinder engines. A full set of drawings and build notes are included.

Short video of the box in use here
Stroboscopic Timing Light
For use with the Start-Up Box, easily adapted to work with other Hall pick-up systems or even points.
Use this strobe to check your timing whilst the engine is running. Aim the light at your timing marks. Flash is triggered when the spark plug fires which "freezes" the moving timing mark.
This unique design uses a high power white LED and a microcontroller to ensure a bright flash and blur-free marks at any RPM.
Available as a kit complete with all materials and A4 drawings. The circuit board is built and tested. Some machining required.  You make up the case from supplied acetal rod and wire up the connecting lead.

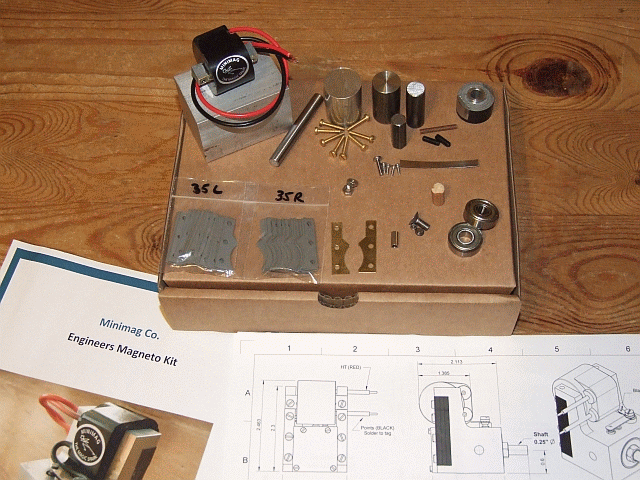

'Falcon' Engineers Magneto Kit
This kit will enable you to build a miniature high-tension magneto suitable for use with most small to medium sized low-speed model spark-ignition engines from about 18cc to 50cc. With a geared distributor and two flats on the points cam it can be used on multi-cylinder engines too. Do bear in mind that the magneto will consume some engine power, so it is not recommended for very small or very low power engines. For these applications, consider one of our electronic ignition solutions.
  • Compact design.  See  GA drawing
  • All materials, bearings and fasteners included in the kit.
  • Fully tested ignition coil.
  • High power neodymium magnetic rotor assembly.
  • Set of 9 A4 drawings.
  • Step-by-step Build Manual (available as a download)

An "Export Kit" available for those who wish to source bar stock materials and common items locally. Can save on shipping charges. We just supply all the specialist items - laminations, coil, rotor and contact points parts. Please email or phone for details.


Sorry, this item is currently unavailable



Minimag Novus fully encapsulated miniature ignition coils
  • 4V to 6V operation
  • 36mm dia. 51mm high. Weight 150gm.
  • Low cost
Two versions are available:
NOVUS-1   single output               Drawing here

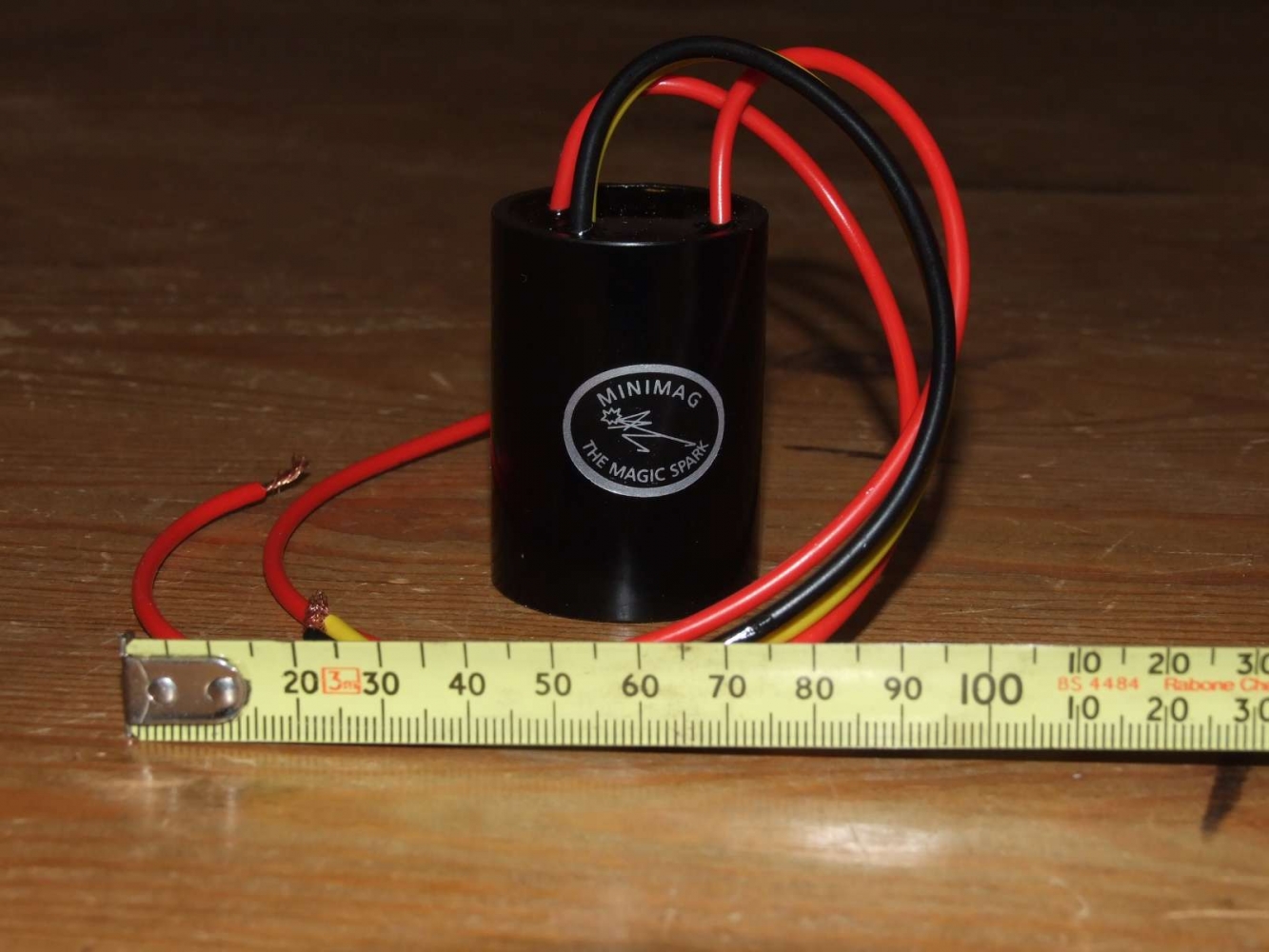

NOVUS-2   dual output (pictured)   Drawing here
These coils need control over 'closed dwell' time for best efficiency and to avoid overheating. We recommend using our electronic module MIC-1 together with magnetic sensor MRS-1 or MHS-1. Conventional contact points can be used, but make sure there is current limiting in the primary circuit to protect the coil and wiring should engine stop with the points closed. If in doubt, please contact us for advice. These coils do not have a built-in capacitor as it is not required for use with a MIC-1 electronic module. For use with points, we will supply a suitable component free-of-charge on request.




Igniter Coil

Type IGN-1 miniature igniter coil for use on 6 volts.
36mm diameter, 51mm tall, 250mm leads.
Winding and core fully vacuum potted for reliability.
What's an igniter?
Early IC engines used a low tension ignition system. A set of contact points is fitted inside the cylinder and an actuator passes through a seal to the outside. Contacts are wired in series with a battery and a coil. When the contacts break, a spark is produced across the contacts.

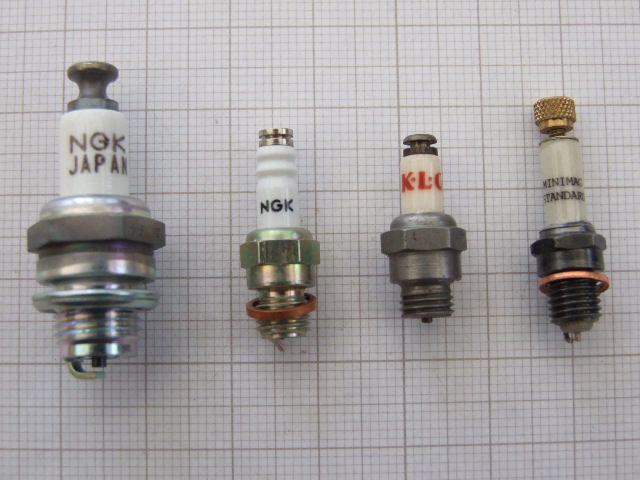

Miniature spark plugs

We now stock the very excellent American made Rimfire miniature spark plugs.
The Rimfire VR2 has the same thread and reach as the original Minimag Standard.
In our opinion these are probably the best miniature spark plugs you can buy.
We can supply from stock or on short lead time any of the plugs in the Rimfire range.
Full details here

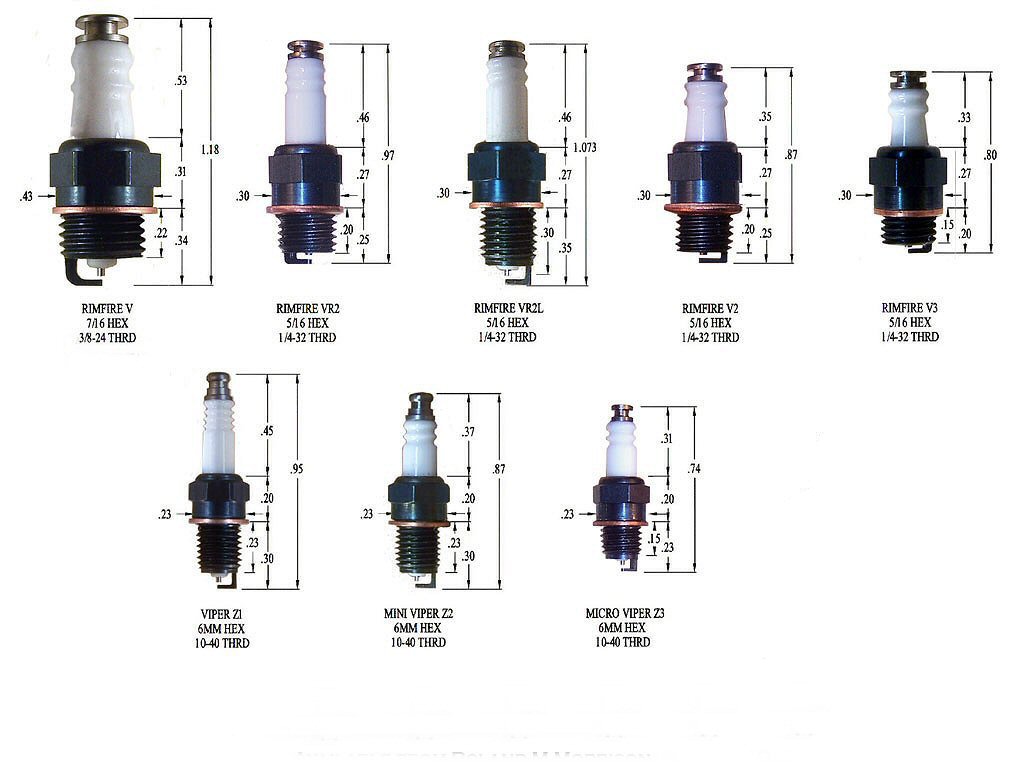

Rimfire Z1      10-40 UNS x 0.23" reach
Rimfire Z2      10-40 UNS x 0.23" reach, shorter porcelain.

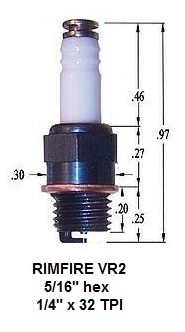

Rimfire VR2    1/4" x 32TPI x 0.2" reach,
Rimfire V2      1/4" x 32tpi x 0.2" reach, shorter porcelain
Rimfire VR2L  1/4" x 32TPI x 0.3" reach
Rimfire V        3/8" x 24TPI x 0.22" reach
Need a tap? We can usually supply from stock. Please phone or email for
price and availability.

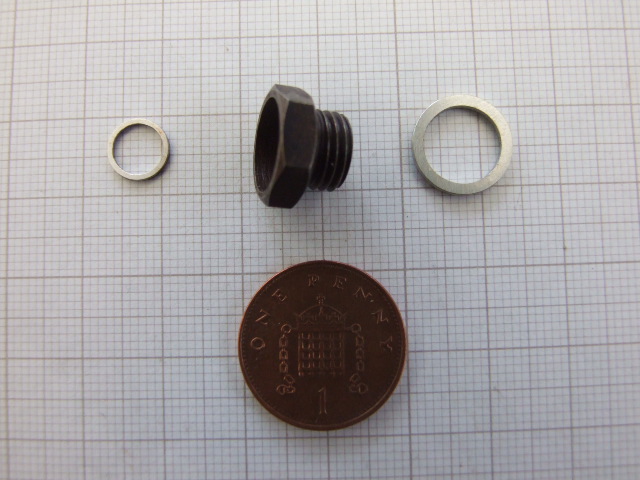

Copper sealing washers, pack of 10, to suit 1/4" plugs
  • Plug leads
  • Adaptors 3/8" to 1/4" for vintage IC engines are available.

       Please call or email for details.


Wiring Kit
Comprising fitted battery connectors, in-line fuse holder with two fuses and a miniature toggle switch. Engine earth lead with 4BA ring terminal. Pre-assembled and fitted with "bootlace" ferrules for reliable screw connections. Intended for use with our MIC-1A controller.
Wiring diagram included.

Coil Clip
Securely holds a Novus-1 or Novus-2 coil horizontally or vertically.
One-piece nylon construction. Supplied with a clamp screw and nut.



Miniature Ignition Controller MIC-1A
Complements the Novus-1, Novus-2 ignition coils for users wanting a contactless solution. Magnetic sensor input. Auto switch-off if engine comes to rest with the sensor active.
Operates on 4.5 to 12 volts so can be used with other coils.
Dimensions 45mm x 30mm x 15mm
Connections by screw terminals
Integral static timing light.
Drawing and specs here

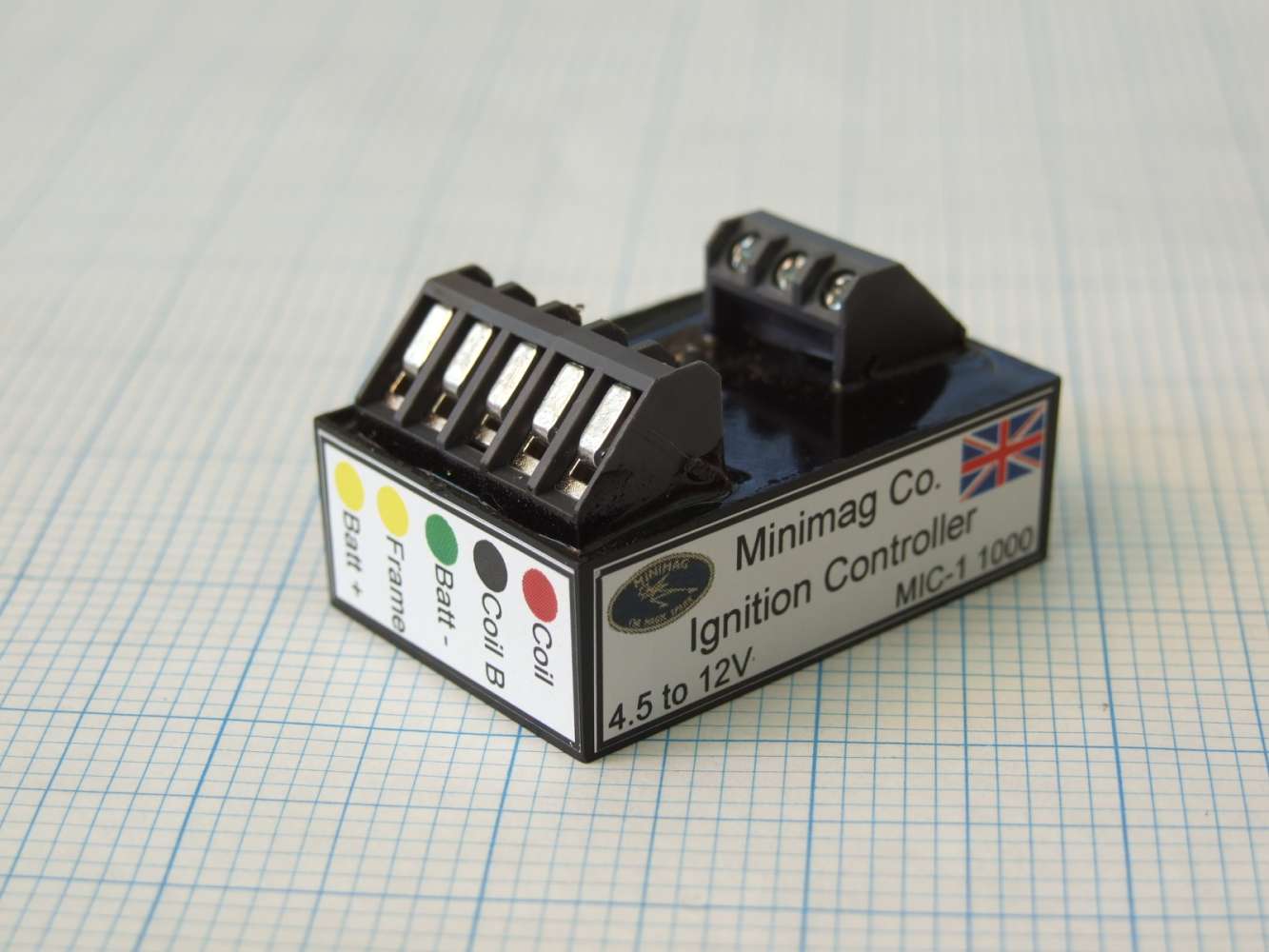

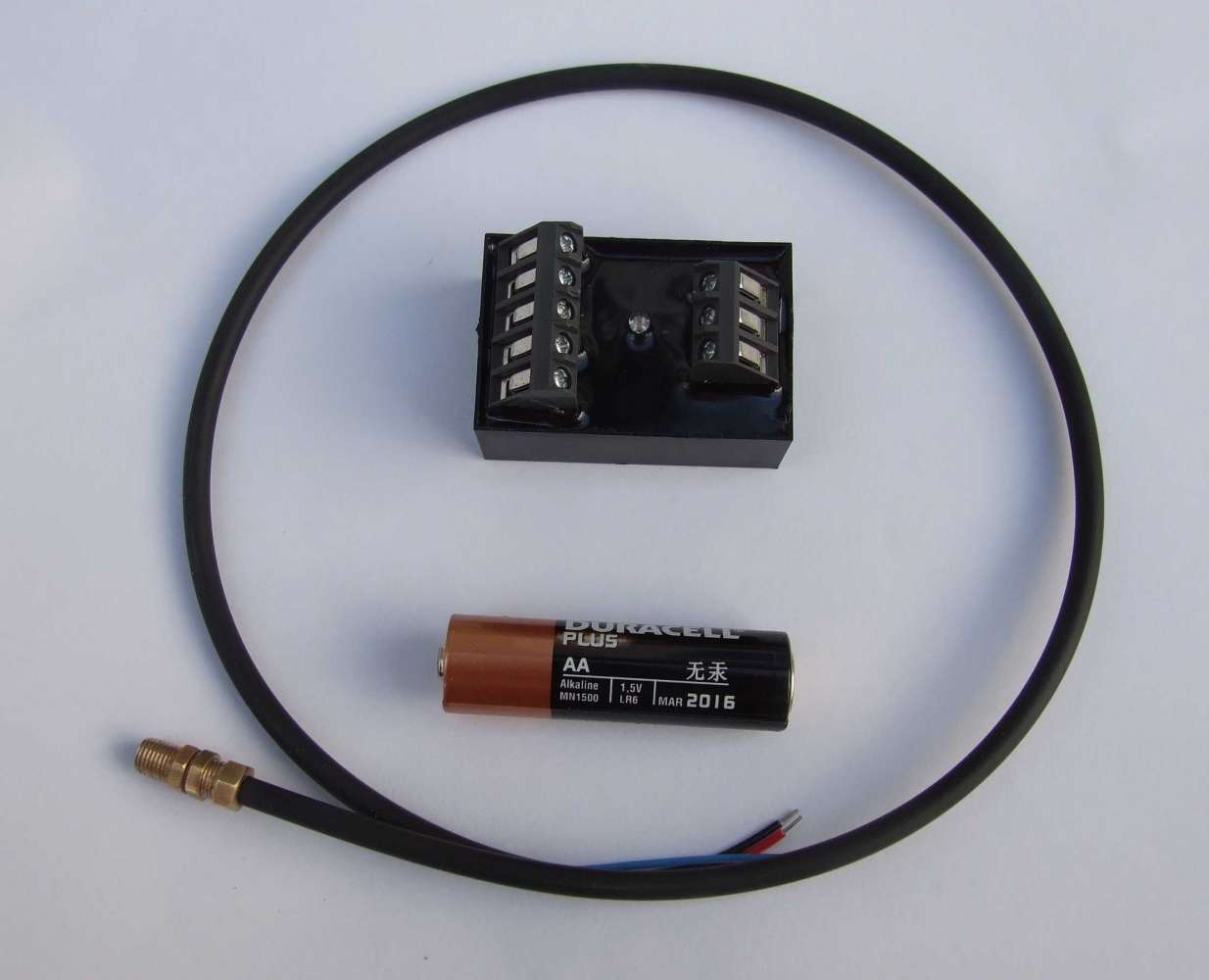

MIC-1 shown. MIC-1A is virtually identical, we've simplified wiring by dropping the internal ballast resistor and adding a Frame GND terminal.

A small, low-profile Hall effect sensor kit with integral mounting flangeFitted with 300mm fly leads colour coded to suit the MIC-1A electronic module. Supplied complete with two M3x8 button-head mounting screws, a 3x2 neodymium actuating magnet, wiring ferrules and a length of black PVC sleeving.

Drawing and specs here
Sub-miniature Proximity Sensor Assembly MRS-1
Utilising a magnetoresistive sensing element, the sensor is encapsulated in a brass housing threaded 7/32" x 40TPI by 1/2". It is supplied with two 1/4" AF locknuts and 18" cable. Interfaces with our miniature ignition module (above) and is supplied with a 3mm x 2mm neodymium actuating magnet. Works with either polarity of magnet over at least 3/8" airgap. Shown here with a MIC-1 ignition module and AA cell for scale.
Drawing and specs here

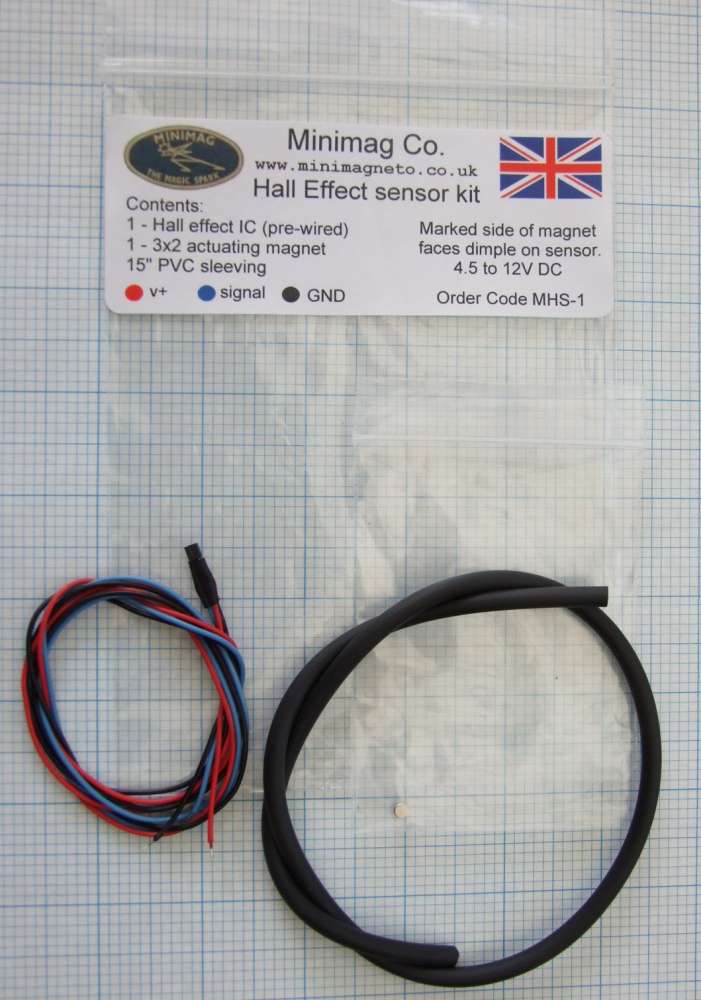

Sub-miniature Hall Effect Sensor kit MHS-1
Kit includes a pre-wired Hall Effect sensor IC,
3 x 2 neodymium magnet and a length of
PVC sleeving.
Drawing and specs here

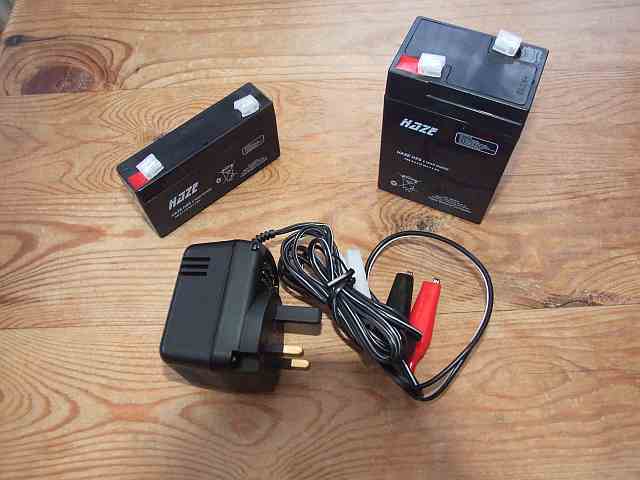

We can supply quality 6V sealed lead-acid batteries and a suitable plug-in charger (UK only).
Three sizes currently available (dimensions in mm):
Order Code
6V 1.3 AH
6V 3.2 AH
6V 4.5 AH
Charger:  6V 500mA. Fused output with croc clips. Fits a UK 13A socket.
Order code Charger 6V
Please email us with your battery requirements and we will send you a PayPal invoice.
Or, you can purchase on-line using PayPal on our Buy page.
